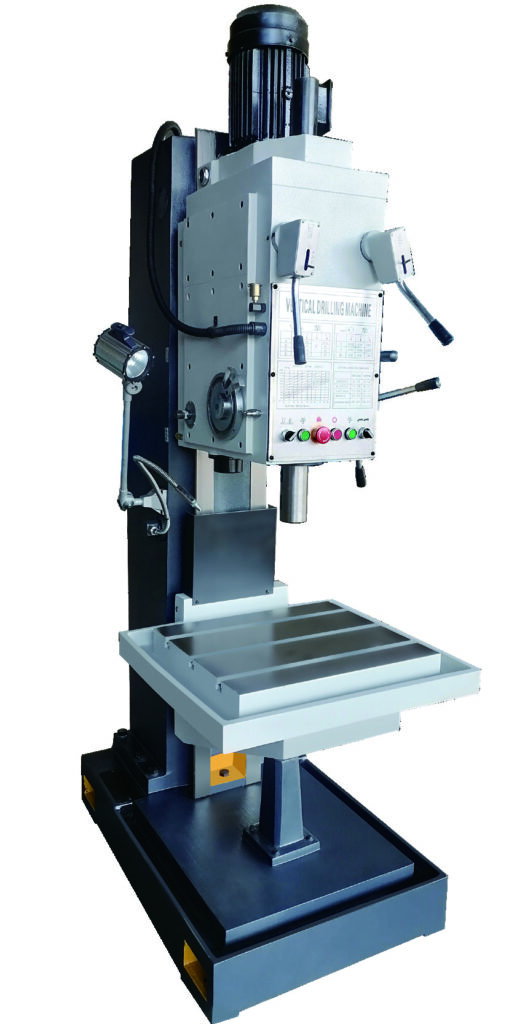

The Z5150B vertical drilling machine is a sturdy model with a drilling capacity of up to 50 mm.
560 × 480 mmTable size
50 mmMax drilling capacity
MT5Spindle taper
Description
The Z5150B vertical drilling machine suits work that calls for a dependable solution, with a 560 × 480 mm work surface, MT5 spindle taper and 3 kW motor. A sturdy model with a drilling capacity of up to 50 mm.
- Work area 560 × 480 mm work surface
- Drilling capacity up to 50 mm
- Spindle taper MT5
Suitable if…
- you need a practical machine for drilling or milling
- your workpiece dimensions fit the machine's work area and spindle taper
- easy setup and everyday use are important
Before you choose
- whether the 560 × 480 mm work area is large enough for your parts
- whether a drilling capacity of up to 50 mm covers your needs
- whether the MT5 spindle taper suits your tooling
If you need a larger drilling capacity, also look at the Z5163B and Z5180B models.
Technical data
| Model | Z5150B |
|---|---|
| Table size | 560 × 480 mm |
| Max drilling capacity | 50 mm |
| Spindle taper | MT5 |
| Spindle speed | 31.5-1400 rpm |
| Motor power | 3 kW |
| Machine weight | 1300 kg |
