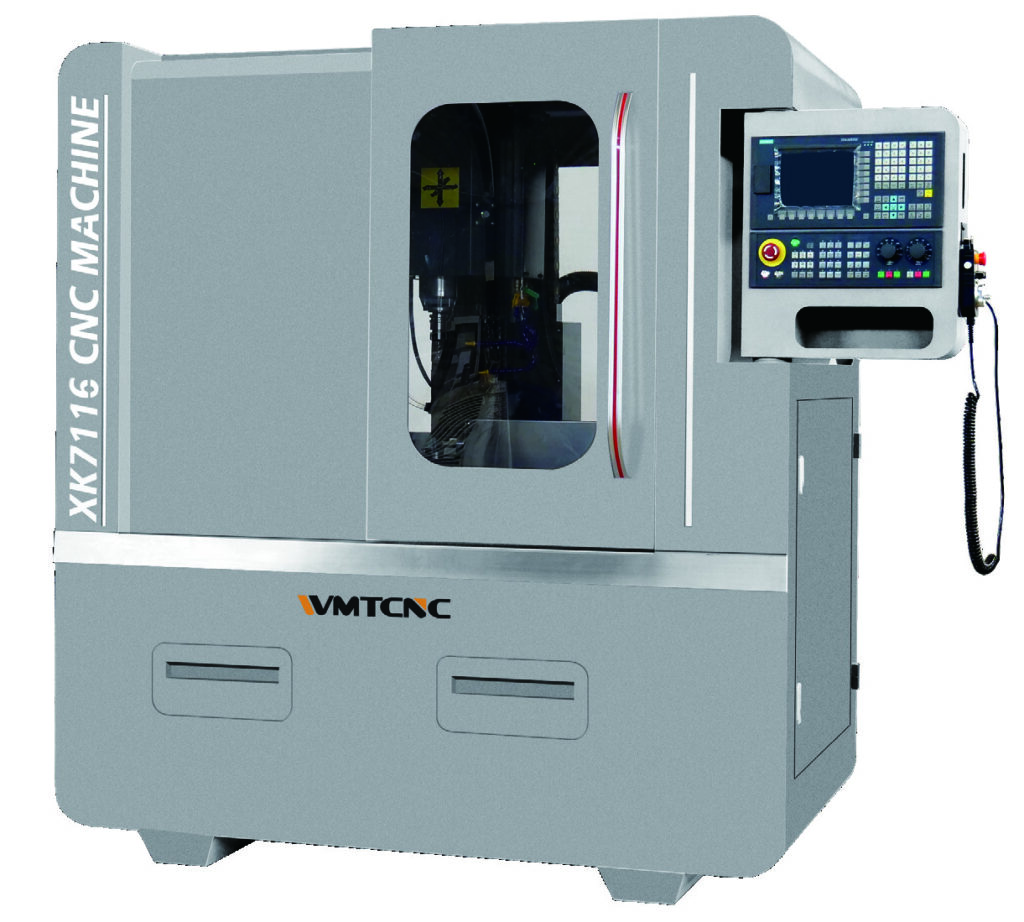

The XK7116 suits training, prototyping and precise machining of smaller parts. A 600 × 163 mm table, BT30 spindle taper and speeds up to 18000 rpm support faster, more detailed work.
600 × 163 mmTable size
350/160/400 mmX/Y/Z travel
18000 rpmMax spindle speed
Description
The XK7116 is a suitable choice where you need a compact machine with a fast spindle for training, development or small-series work. An 18000 rpm spindle speed, BT30 taper and 3.7 kW power give good prerequisites for precise machining in a smaller working area.
- Fast spindle Max spindle speed up to 18000 rpm
- Suited to training Compact format for training and development work
- BT30 taper A good choice for lighter precision work
Suitable if…
- you need a machine for training or prototyping work
- a high spindle speed is important
- you work with smaller parts
Before you choose
- whether the 600 × 163 mm table is sufficient
- whether the 160 mm Y travel suits the width of your part
- whether the machine weight of 900/1000 kg suits your installation needs
If you need a larger table and a stronger industrial configuration, consider comparing it with the XH7122 or XH7126.
Technical data
| Model | XK7116 |
|---|---|
| Table size | 600 × 163 mm |
| X/Y/Z travel | 350/160/400 mm |
| Spindle taper | BT30 |
| Spindle power | 3.7 kW |
| Max spindle speed | 18000 rpm |
| Max table load | – |
| Machine weight | 900/1000 kg |
