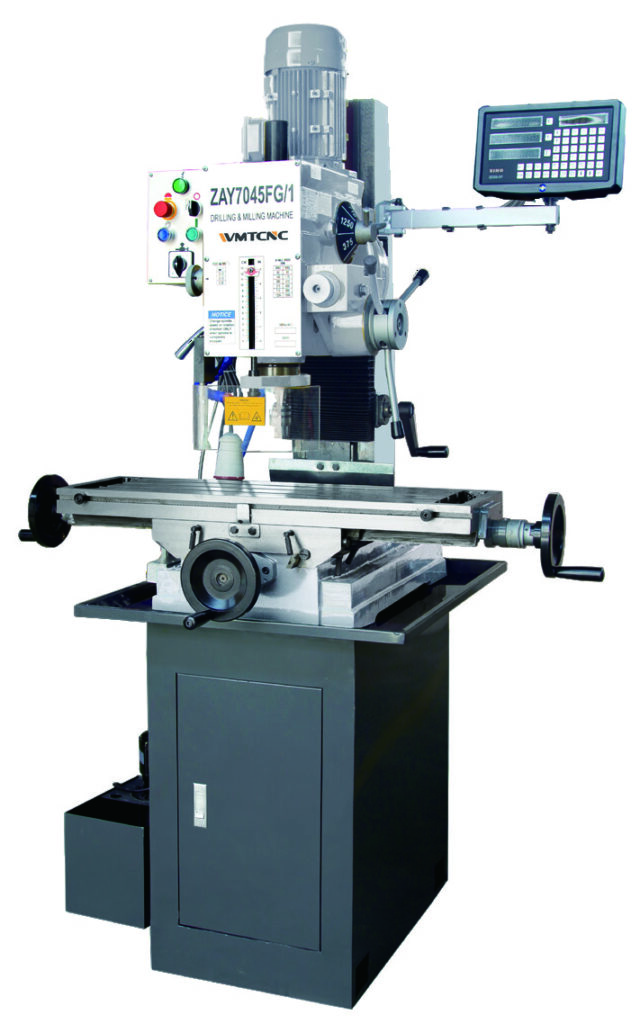

The ZAY7045FG milling/drilling machine is a reliable model with 6 speed steps for milling and drilling.
800 × 240 mmTable size
45 mmMax drilling capacity
MT3/MT4/R8Spindle taper
Description
The ZAY7045FG milling/drilling machine suits work that calls for a dependable solution, with an 800 × 240 mm work surface and MT3/MT4/R8 spindle taper. A reliable model with 6 speed steps for milling and drilling.
- Work area 800 × 240 mm work surface
- Drilling capacity up to 45 mm
- Spindle taper MT3/MT4/R8
Suitable if…
- you need a practical machine for drilling or milling
- your workpiece dimensions fit the machine's work area and spindle taper
- easy setup and everyday use are important
Before you choose
- whether the 800 × 240 mm work area is large enough for your parts
- whether a drilling capacity of up to 45 mm covers your needs
- whether the MT3/MT4/R8 spindle taper suits your tooling
The ZAY7045FG/1 is the choice if you need an automatic feed solution.
Technical data
| Model | ZAY7045FG / ZAY7045FG/1 |
|---|---|
| Table size | 800 × 240 mm |
| Max drilling capacity | 45 mm |
| Spindle taper | MT3/MT4/R8 |
| Spindle speed | 80-1250 rpm |
| Motor power | 1.5 kW |
| Machine weight | 320/370 kg |
| Versions | ZAY7045FG and ZAY7045FG/1 |
